Outbound calls can be made to external customers using SmartAssist Voice Gateway (SAVG). The answering machine detection feature can be enabled on outbound calls to indicate whether a person or a machine has answered a call.
When the dialed call is answered, the answering machine detection feature starts listening to the outbound call, and after a short period, sends an indication of whether a person or a machine has answered the call.
This process happens in two parts:
- The application triggers an Outbound Call.
- Receiving Call Status Notifications.
1. Triggering the Outbound Call via API
The application triggers an outbound call using an HTTP POST request to the endpoint.
Method | POST |
Endpoint | https://{{host}}/api/1.1/public/bot/{{botId}}/smartassist/dialout |
Content Type | application/json |
Authorization | auth: {{JWT}} See How to generate the JWT Token. |
API Scope | SmartAssist Dialout |
Path Parameters
Parameter | Description | Type |
---|---|---|
host | Environment URL, for example, https://smartassist.kore.ai | string, required |
Query Parameters
PARAMETER | DESCRIPTION | TYPE |
---|---|---|
botId | botId or streamId. You can access it from the bot’s General Settings page. | string, required |
target | URI of the target of the outbound call. For example:
|
string, required |
caller | User part for the caller ID of the outbound call. It is the experience flow number in smartAssist. | string, required |
notifyurl | Absolute URL of the dialer application where SAVG sends notifications. If not provided, no notifications are sent. |
string, optional |
notifyHeaders | If these are included in the API payload, these headers will be sent along with AMD notifications to the specified notifyUrl. |
object, optional |
timeoutInMs | This provides improved control over how long the system should wait for the recipient to answer. |
number, optional |
trunk | The trunk is a carrier for the account. If not provided, It will pick the default carrier for that account. |
string, optional |
metadata | Data to be sent to the bot (can be used to provide information to the bot about the call,
such as the name of the target). |
object, optional |
timers | An object containing various timeout properties. Learn more. | object, optional |
machinedetection | Activates machine (answering machine and fax) detection. Possible values:
|
string, optional |
thresholdWordCount | Number of spoken words in a greeting that result in an amd_machine_detected result. | number, optional |
Timers Configuration
PROPERTY | DESCRIPTION | REQUIRED |
---|---|---|
timers.noSpeechTimeoutMs |
Time in milliseconds to wait for a speech before returning
amd_no_speech_detected. |
no, default=5000 |
timers.decisionTimeoutMs |
Time in milliseconds to wait before returning
amd_decision_timeout. |
no, default=15000 |
timers.toneTimeoutMs |
Time in milliseconds to wait to hear a tone. | no, default=20000 |
timers.greetingCompletionTimeoutMs |
Silence in milliseconds to wait for during greeting
before returning amd_machine_stopped_speaking. |
no, default=2000 |
timers.noSpeechTimeoutMs |
Time in milliseconds to wait for a speech
before returning amd_no_speech_detected. |
no, default=5000 |
Outbound Calling API Sample Request
curl --location --request POST '{{host}}/api/1.1/public/bot/:/smartassist/dialout' \ --header 'Format: application/json' \ --header 'auth: {{JWT_TOKEN}}' \ --data-raw '{ "bot": "st-e38782ff-0d89-52e9-5678769a49fdexxxx", "target": "tel:911234567890", "caller": "+127061657882", "trunk": "TRUNK", "timers": { "noSpeechTimeoutMs": 12000, "decisionTimeoutMs": 15000, "toneTimeoutMs": 20000, "greetingCompletionTimeoutMs": 10000 }, "timeoutInMs": 60000, "thresholdWordCount": 4, "machineDetection": "detect", "notifyurl": "https://de8a-115-114-88-222.ngrok-free.app/notify", "notifyHeaders": { "Accept": "application/json", "Content-Type": "application/json", "x-channel-type": "X42_IVR", "event-type": "x42-ivr-voice-voice-interactions" }, "metadata": { "jobPosition": "Software Engineer", "userName": "John Doe", "companyName": "abc corporation", "jobLocation": "USA" } }'
Outbound Calling API Sample Response
{ "sid":"f9bd46ab-ecbd-4216-842e-0c58db3axxxx", "callId":"2c01240f-6880-123c-179b-02d8f501xxxx" }
2. Receiving Call Status Notifications
To receive call status notifications, we can use the ‘notifyUrl’ property on the dial-out request.
When this property is set, the Voice Gateway sends an HTTP POST request to the specified URL.
Previously, the API supported notifications only for two call events: Answered-Completed or Failed. Now, we’ve expanded this to include all Answering Machine Detection (AMD) events during the call progress.
- By default, all AMD events (for example, amd_machine_detected, amd_machine_stopped_speaking, amd_stopped, etc.) are sent automatically.
- To avoid receiving all AMD events, you can opt out by setting amdEventsSubscription: [] in the Dialout API payload.
NotifyUrL Sample Response
{ "conversationId": "433a9a58-44eb-4c56-bb3e-ab2415f0xxxx", "reason": "200 OK", "reasonCode": "OK", "callConnectTime": "2025-06-26T12:49:17.600Z", "ringDurationInMS": 3381, "connectDurationInMS": 4343, "status": "Answered" } { "conversationId": "433a9a58-44eb-4c56-bb3e-ab2415f0xxxx", "reason": "200 OK", "reasonCode": "OK", "callConnectTime": "2025-06-26T12:49:21.761Z", "ringDurationInMS": 3381, "connectDurationInMS": 4343, "status": "Call-In-Progress", "machineDetection": "amd_machine_detected" } { "conversationId": "433a9a58-44eb-4c56-bb3e-ab2415f0xxxx", "reason": "200 OK", "reasonCode": "OK", "callConnectTime": "2025-06-26T12:49:31.103Z", "ringDurationInMS": 3381, "connectDurationInMS": 4343, "status": "Call-In-Progress", "machineDetection": "amd_stopped" } { "conversationId": "433a9a58-44eb-4c56-bb3e-ab2415f0xxxx", "reason": "200 OK", "reasonCode": "OK", "callConnectTime": "2025-06-26T12:49:31.092Z", "ringDurationInMS": 3381, "connectDurationInMS": 4343, "status": "Call-In-Progress", "machineDetection": "amd_machine_stopped_speaking" } { "conversationId": "433a9a58-44eb-4c56-bb3e-ab2415f0xxxx", "reason": "200 OK", "reasonCode": "bot-disconnected", "callConnectTime": "2025-06-26T12:49:17.609Z", "ringDurationInMS": 3381, "connectDurationInMS": 4343, "status": "completed", "callDuration": 109, "machineDetection": "amd_machine_detected", "sessionId": "685d41cd54d09f7f699axxxx", "callDisconnectTime": "2025-06-26T12:51:07.151Z" } { "conversationId": "00721e4f-bcbe-4965-ba3f-b24aec5bxxxx", "reason": "486 Busy Here", "reasonCode": "Busy Here", "callConnectTime": "2025-06-26T13:00:13.374Z", "ringDurationInMS": 15255, "connectDurationInMS": 17204, "status": "Failed", "callDisconnectTime": "2025-06-26T13:00:13.374Z" }
notifyHeaders
- You can now include notifyHeaders in the API payload. These custom headers will be passed along with the AMD notifications to the specified notifyUrl.
- This enhancement provides flexibility to send additional metadata or authentication information with your callbacks.
- Example Headers List (including both default and notifyHeaders)
- Accept: /
- Accept-Encoding: br, gzip, deflate
- Accept-Language: *
- Authorization: Basic a29yZS5haTp6dkw3JDckaUJxSjQyJDBA
- Content-Length: 1495
- Content-Type: application/json
- Host: reptile-fitting-wolf.ngrok-free.app
- SAVG-Signature: t=1750947610,v1=2bdbc3c37371dcd9cf62ef637624a4e7eff42ebeb4e5c100c83b7146422bb091
- Sec-Fetch-Mode: cors
- User-Agent: node
- X-Forwarded-For: 23.21.52.56
- X-Forwarded-Host: reptile-fitting-wolf.ngrok-free.app
- X-Forwarded-Proto: https
Response Body Parameters
PARAMETER | DESCRIPTION | TYPE |
---|---|---|
conversationId | UUID of the conversation
(matches the |
string, required |
status | Call status:
|
string, required |
reasonCode | If the status is “failed”, it provides the reason for the failure:
If the status is “completed”, it provides the reason for the call end:
|
string, required |
reason | Free text describing the reason for the failure (for example, the SIP Reason header). | string, required |
callconnecttime | The time when the call was connected (when the end-user picked up the phone). | string, required |
callDisconnecttime | The time when the call was disconnected. | string, required |
duration | The duration of the call from connectTime to the end of the call in seconds. | string, required |
ringDurationInMs | Ringing to Connection Delay – It is the time between when the call starts ringing and when the other person answers and the call connects. | number, required |
connectDurationInMs | Dial to Connection Delay – This is the time elapsed from when the caller dials to when the call is answered and connected. | number, required |
machinedetection | This property is included when answering machine detection
is enabled ( And the call ends. It provides the detection reason:
|
string, required |
3. Accessing AMD Values Using Context Variables
These values will be available in the context and can help design more effective bot flows based on call behavior during Answering Machine Detection. You can access them using:
context.session.UserSession.amdInfo
- Contains the following values (some may be optional or unavailable)
- amdEvents (all AMD-related events)
- amdGreeting (amd_machine_detected related message)
- amdReason (reason for amd_machine_detected)
- amdRingDurationInMs (difference between call-in-progress and ringing/early-media)
- amdConnectDurationInMs (difference between call-in-progress and trying)
- Contains the following values (some may be optional or unavailable)
context.session.UserSession.amd
- Contains the following values (some may be optional or unavailable)
- amd_human_detected: A human is speaking.
- amd_machine_detected: A machine is speaking.
- amd_no_speech_detected: No speech was detected.
- amd_decision_timeout: No decision was made in the time given.
- amd_machine_stopped_speaking: A machine has completed the greeting.
- amd_tone_detected: A beep was detected.
- amd_error: An error has occurred.
- amd_stopped: Answering machine detection was stopped.
- Contains the following values (some may be optional or unavailable)
4. Interaction Status Logs
Machine Detection Flag

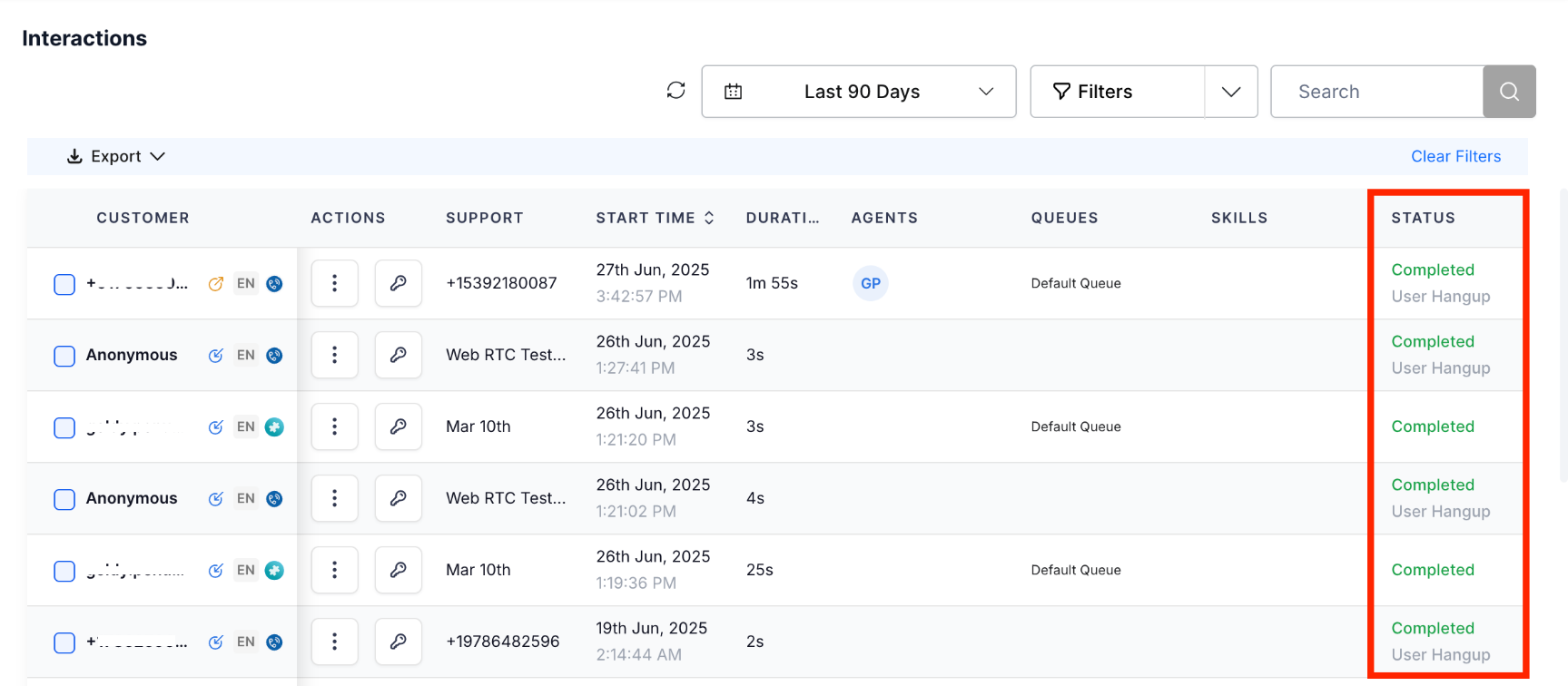

- When the machineDetection parameter is set to disconnect, and the system detects a machine using either amd_machine_detected or amd_tone_detected, the call will be marked as machineDetected in the Interactions page under the Status column.
- This helps you easily identify and track calls that were disconnected due to machine detection.
