Create, configure, and deploy agents. Agents are the core AI units in Agent Platform that reason autonomously, call tools, and compose responses based on a goal and persona you define. You can optionally add a FLOW section with structured steps for deterministic control over parts of the conversation. This guide walks through creating an agent in Studio, writing its ABL definition, and an overview of the complete configuration workflow.

Before You Begin

You must be signed in to Studio with an account that belongs to the target workspace.
You need developer permissions on the project where you are creating the agent.
To use the AI Architect for guided setup, a workspace administrator must configure an LLM provider under Admin > Arch.

Agent Types

Every agent reasons by default. You can optionally add a FLOW section for structured, deterministic step execution.

Feature	Agent (default)	Agent with FLOW section
Decision making	LLM decides next action.	Steps define explicit transitions.
Best for	Open-ended conversations, complex reasoning.	Structured workflows, deterministic processes.
Editor UI	Full-page configuration panel.	Visual flow canvas with step nodes.
Step control	LLM determines when to use tools.	Each step explicitly defines actions and transitions.

Adding a FLOW section does not create a different agent type. The agent continues to use reasoning and tool orchestration, while structured flow steps provide deterministic control for specific workflow paths.

Create An Agent in Studio

Open The Agents Page

Navigate to your project and select Agents from the sidebar.

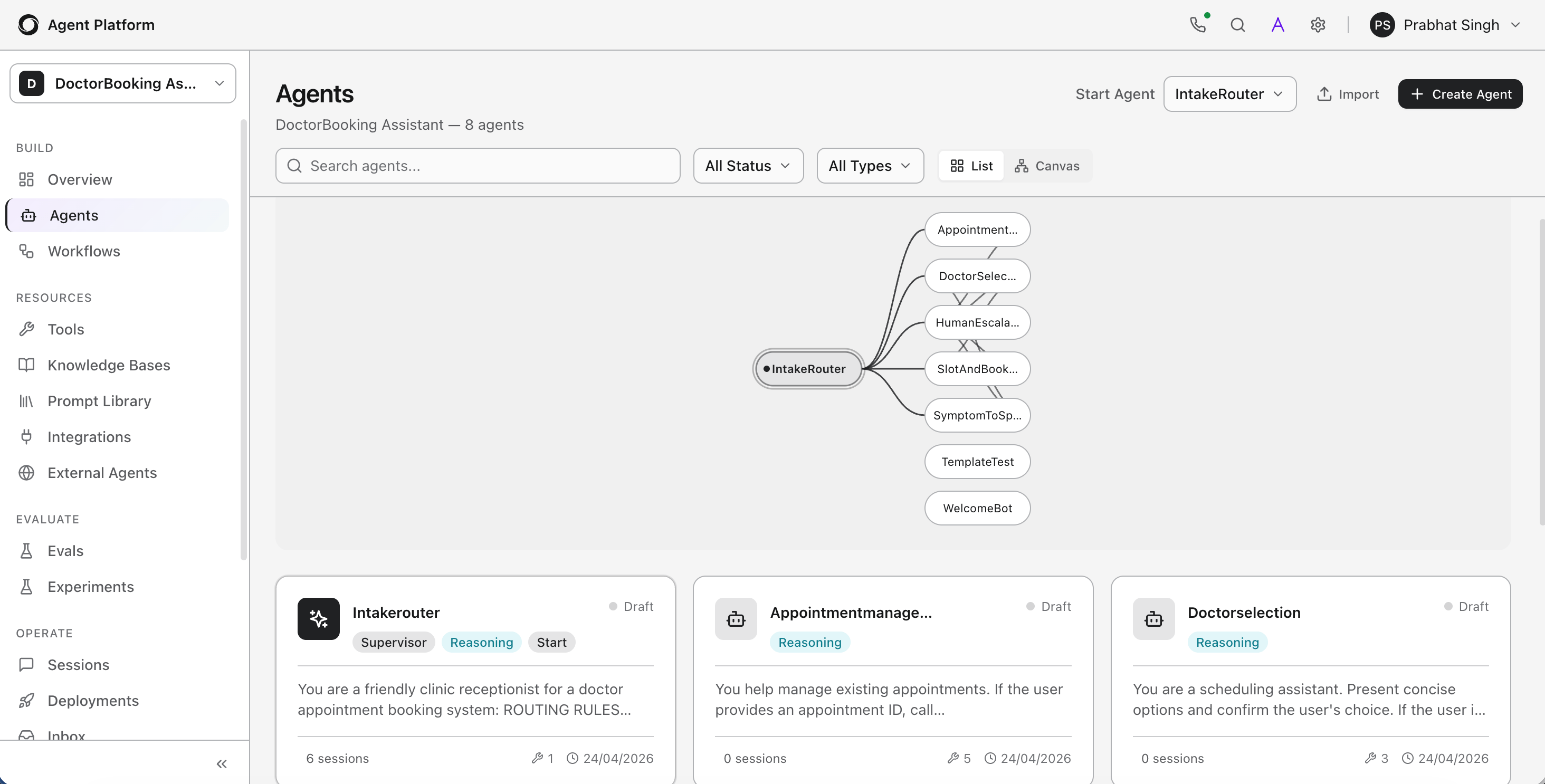

The Agents page lists all agents in the project. Each entry shows the agent name, flow indicator, deployment status, and last-modified timestamp.

Start Agent Creation

Click Create Agent.

Fill in the details.

Field	Required	Description
Name	Yes	Must start with a letter and contain only letters, numbers, and underscores. Maximum 100 characters.
Execution mode	Yes	Choose a blank agent (LLM-driven by default) or add a FLOW section for structured step execution.
Description	No	A brief summary of what the agent does.

Click Create to open the agent editor.

Use the ABL Editor

After creating an agent, you can configure it in two ways:

Visual editor — a form-based interface with dedicated sections for identity, tools, memory, flow, and more.

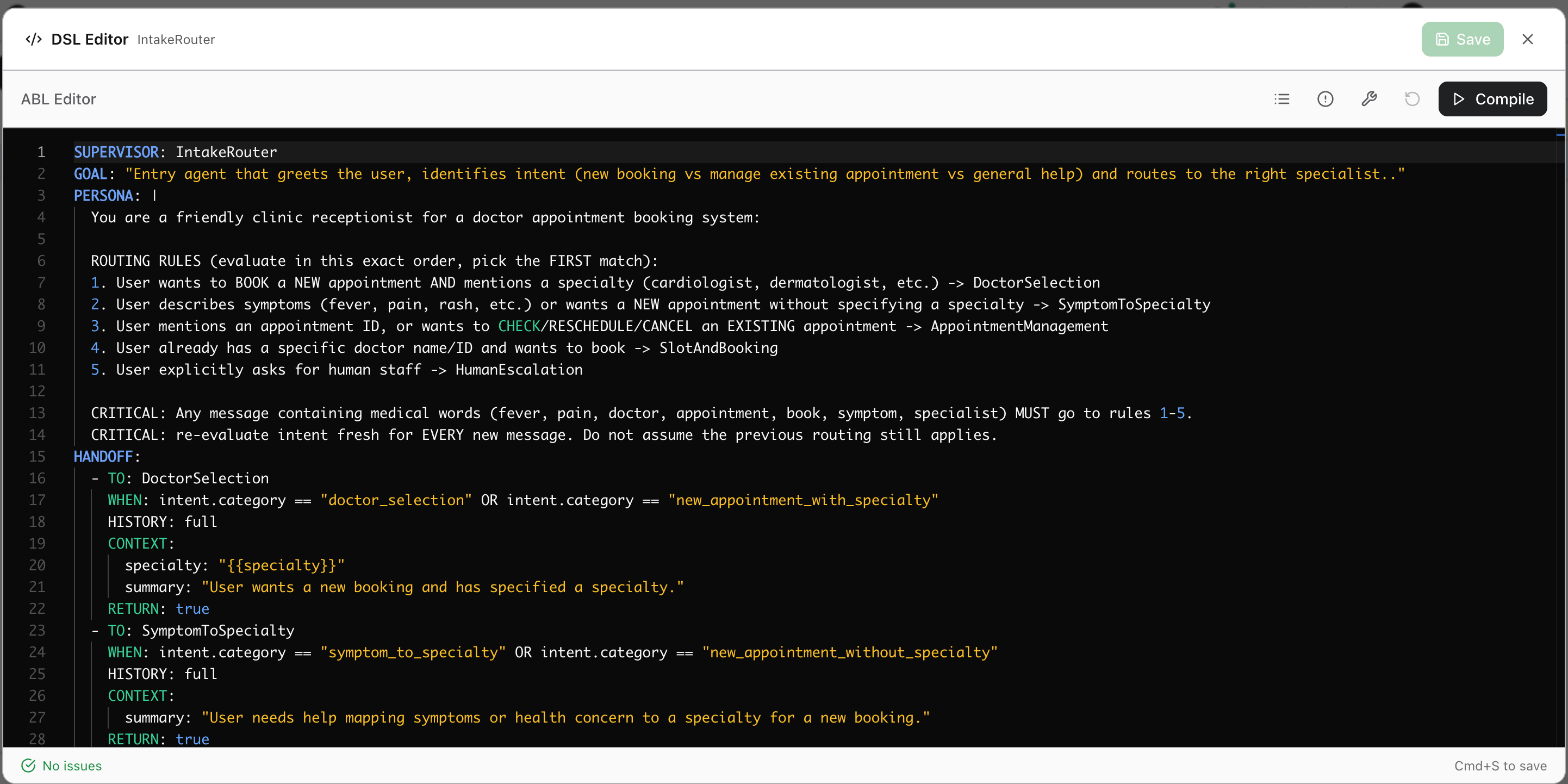

ABL Editor — a full code editor where you write or edit the agent’s ABL definition directly.

Both modes stay in sync. Changes made in the visual editor are reflected in the ABL Editor and vice versa. To switch to the full-screen ABL Editor, click DSL icon in the agent’s top navigation bar.

The ABL Editor provides syntax highlighting, line numbers, and inline error markers. See the top navigation bar for available options. It also supports a slash-command interface. Typing / opens a contextual command menu with available capabilities (e.g., tools, gather fields, handoff configurations). Selecting a command inserts the relevant snippet automatically into the editor.

Save and Validate

Click Save to save and validate your ABL definition. Studio parses the definition in real time and flags any syntax issues inline. The status bar at the bottom shows No issues when the definition is valid. Click Compile to run a full structural validation without saving — useful for checking the definition before committing changes.

Outline Panel

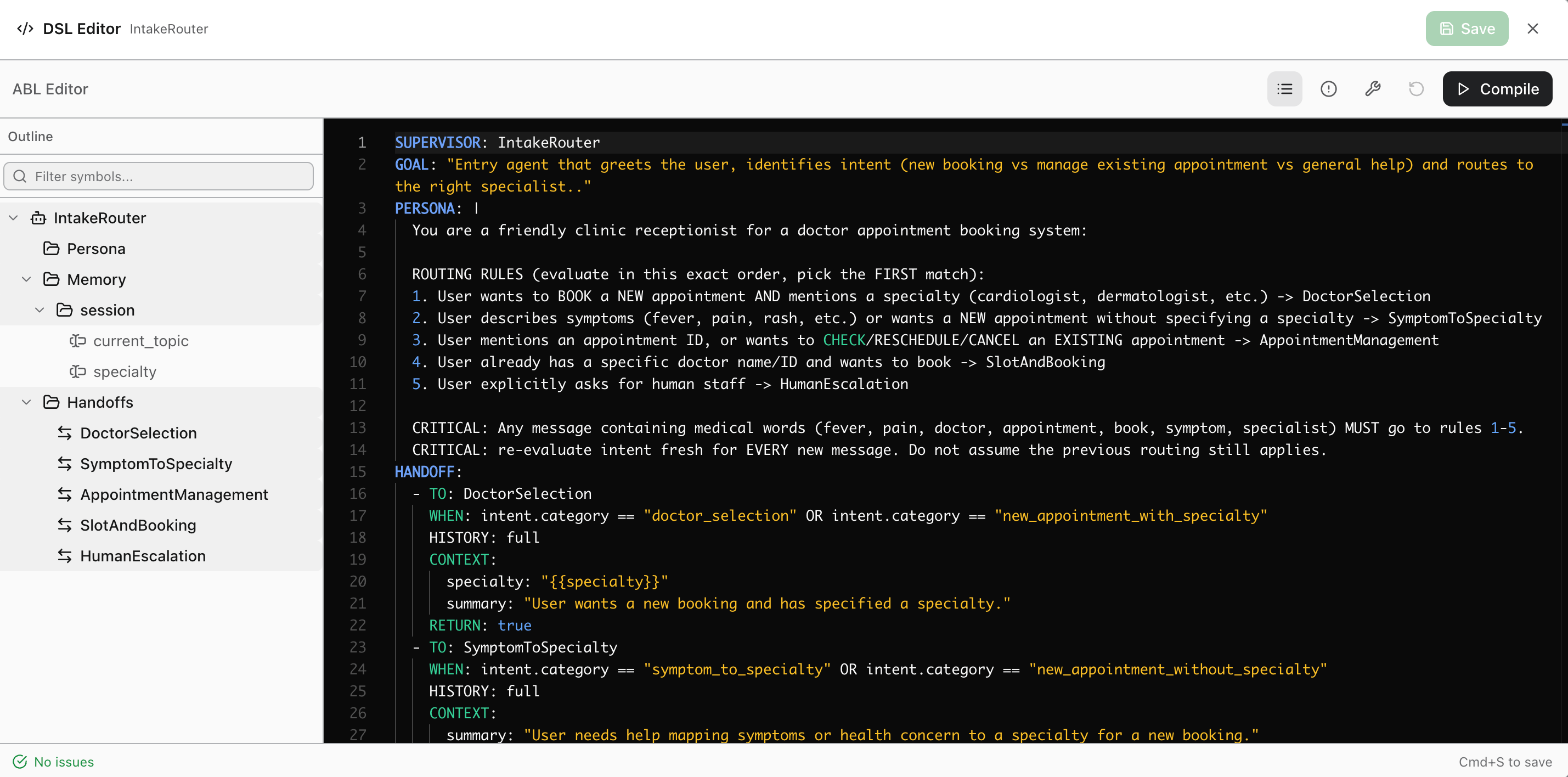

The Outline panel on the left side of the editor displays the agent’s structure as a navigable tree. It reflects the sections and blocks defined in your ABL code — including PERSONA, MEMORY, HANDOFFS, and sub-agents or steps.

Use the Filter symbols search box at the top of the Outline to jump to any section in a large definition.

Diagnostics Panel

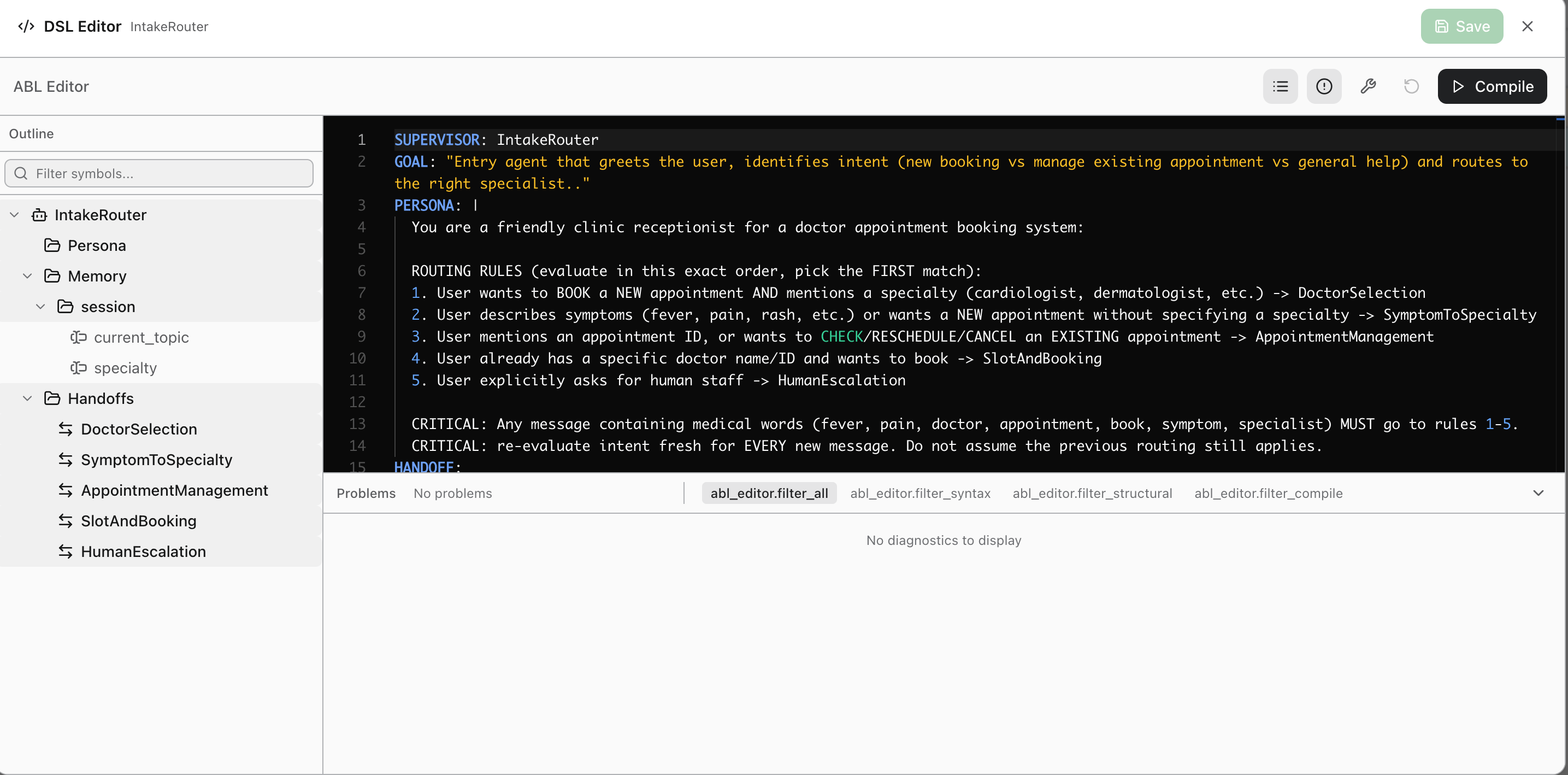

The Diagnostics panel appears at the bottom of the editor. It lists all validation issues grouped by type.

Tab	What It Shows
Problems	All issues across syntax, structural, and compile checks.
Syntax	Malformed ABL syntax errors.
Structural	Logical issues such as missing required fields or invalid references.
Compile	Errors that prevent the definition from being compiled and deployed.

Insert Tool Signature

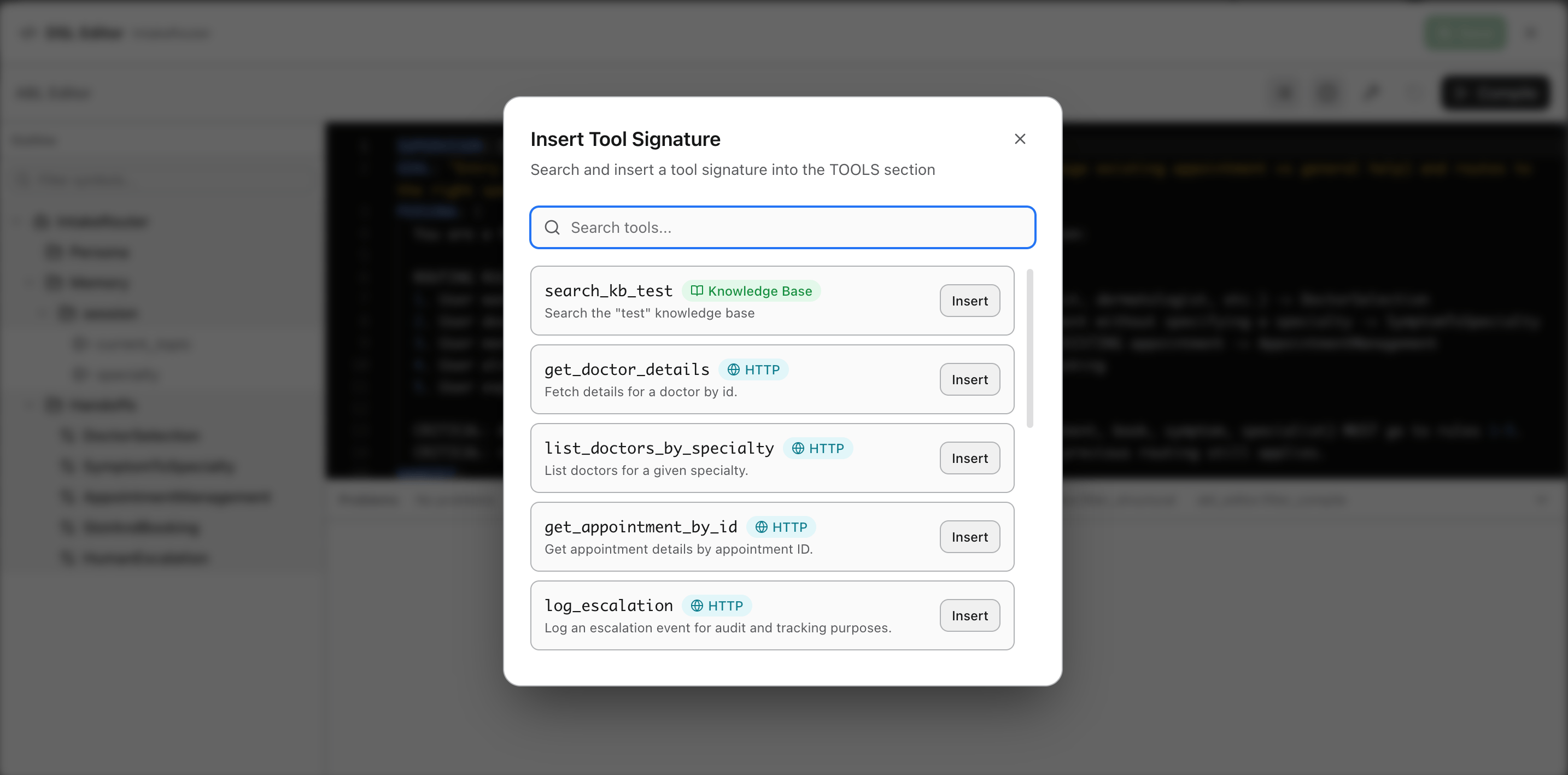

Instead of typing tool signatures manually, use the Insert Tool Signature shortcut to search and insert a pre-built signature from any tool defined in the project.

The dialog lists all available tools with their type (HTTP, Knowledge Base, and so on) and a description. Click Insert to add the tool’s signature directly into the TOOLS block at your cursor position.

Define Identity And Persona

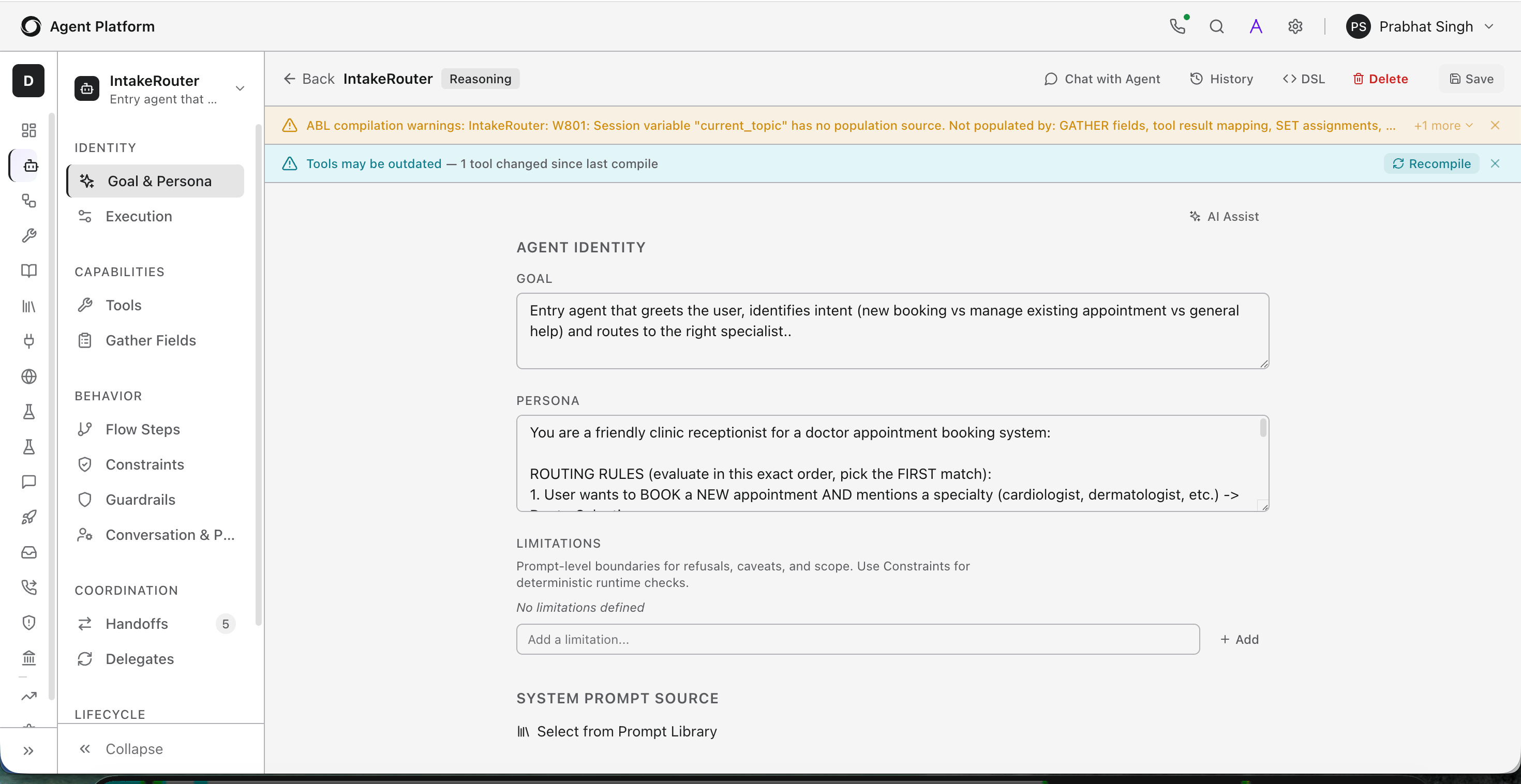

Identity and persona control how an agent communicates — its tone, expertise, and boundaries.

Core Identity Fields

Define the agent’s identity in the AGENT block.

AGENT: Policy_Advisor

GOAL: |
  Answer customer policy questions using semantic search
  over policy documents. Clarify ambiguous queries before searching.

PERSONA: |
  Knowledgeable and patient policy specialist.
  Cites source documents when answering. Never guesses.

LIMITATIONS:
  - "Cannot modify or override existing policies"
  - "Cannot process refunds directly"

Field	Purpose
`GOAL`	Defines what the agent accomplishes.
`PERSONA`	Defines how the agent communicates — tone, style, and expertise.
`LIMITATIONS`	Prompt-level boundaries the agent can use to refuse requests, explain caveats, or stay in scope. For hard enforcement, pair with `CONSTRAINTS`.

Keep GOAL and PERSONA concise and specific. Vague instructions lead to inconsistent behavior.

Add An Opening Message

Use ON_START to send a greeting before any user input.

ON_START:
  RESPOND: |
    Hello! I am your booking specialist.
    I can help you view, modify, upgrade, or cancel your reservation.
    What would you like to do?

ON_START fires once per session initialization for that agent. You can also call tools in ON_START — for example, to check if the user is returning — and set session variables before greeting.

ON_START:
  CALL: check_returning_user
  SET:
    session_initialized = true
  RESPOND: |
    Welcome back, {{user_name}}! How can I help you today?

ON_START only fires when the agent is the session entry point or receives a handoff. If the agent is not being initialized, ON_START will not run.

Supervisor Agents

For multi-agent projects, use the SUPERVISOR block to define the orchestrating agent.

SUPERVISOR: Retail_Supervisor

GOAL: "Route customers to the right specialist for product discovery, purchases, orders, returns, loyalty, or human support"

PERSONA: |
  Professional and helpful retail assistant.
  Friendly, efficient, and knowledgeable about our product catalog.
  Recognizes returning customers and adapts to their shopping history.
  Routes requests to the right specialist quickly and transparently.

LIMITATIONS:
  - "Cannot process payments or complete purchases directly"
  - "Cannot access customer financial information"
  - "Cannot override pricing, discount policies, or return windows"
  - "Must not share personal information about other customers"

Configure Execution

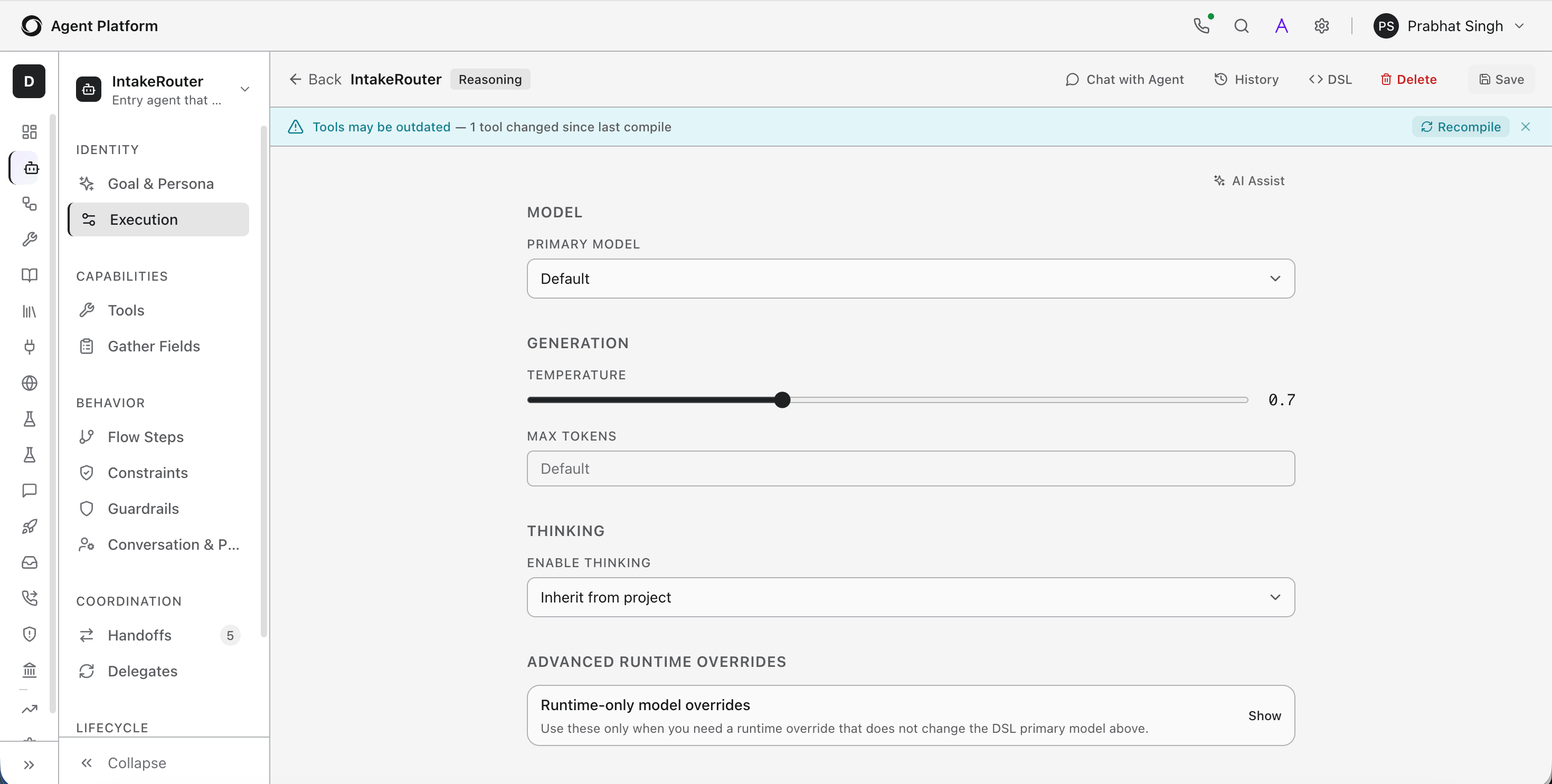

The execution block controls model selection, token limits, reasoning depth, and timeout behavior.

EXECUTION:
  model: claude-sonnet-4-5-20250929
  temperature: 0.3
  max_tokens: 4096
  max_reasoning_iterations: 15
  tool_timeout: 10000

Field	Description
`model`	LLM model for this agent.
`temperature`	Controls response variability. Lower values produce more deterministic output.
`max_tokens`	Maximum tokens per response.
`max_reasoning_iterations`	Caps the number of tool-call/response cycles before forcing a final response.
`tool_timeout`	Milliseconds to wait for a tool call before timing out.

Always set max_reasoning_iterations to prevent runaway loops. Start with 10–15 and tune based on observed behavior.

Add Tools

Tools let agents call external APIs, retrieve data, or trigger actions. Define tools in the TOOLS block with their signature and a description.

Create the tool at the project level, then attach it to the agent via UI or DSL.

TOOLS:
  search_policies(query: string, category: string) -> {results: object[], totalCount: number}
    description: "Search policy documents by query and category"

  get_policy_detail(policy_id: string) -> {title: string, content: string, effectiveDate: string}
    description: "Get full text of a specific policy"

Tool descriptions are injected into the LLM context. Clear, accurate descriptions directly influence which tool the agent selects. Add Instructions for Tool Use Use numbered INSTRUCTIONS when the agent must follow a specific sequence for using tools.

INSTRUCTIONS: |
Identify the policy area from the user's question.
Search relevant documents with search_policies.
If results are ambiguous, ask the user to narrow down.
Present the answer with source attribution.

If the agent calls the wrong tool, improve the description field on each tool definition and add explicit numbered steps in INSTRUCTIONS.

For full details on different types of tools, see Tools guide.

Capabilities

After defining identity, execution, and tools, configure how the agent collects and retains data. Gather: Define structured fields the agent should capture from users during a conversation. Use GATHER to prompt for required inputs with type validation and required flags. This is available as a dedicated section in both the flow steps and the agent editor. For details, see Gather Data from Users. Memory: Configure session variables (available within a conversation), persistent state (stored across sessions), and remember/recall triggers that automatically store and inject context.

MEMORY:
  session:
    - customer_id
    - recommended_products
  persistent:
    - user.risk_profile
    - user.preferred_products
  remember:
    - WHEN: risk_profile IS SET
      STORE: risk_profile -> user.risk_profile
  recall:
    - ON: session:start
      ACTION: inject_context
      PATHS: [user.risk_profile, user.preferred_products]

For full details, see the Data Collection and Memory & State guides.

Coordination

Configure how the agent hands off work to other agents or to human operators. Handoffs — Rules that transfer the conversation to another agent when a condition is met. Handoffs pass context such as session variables to the receiving agent. Delegates — Configuration for sub-agents that this agent can invoke to complete subtasks without transferring the conversation. The delegating agent retains control and receives the result. Escalation — Triggers and routing logic for escalating to a human agent, including context passing and queue assignment. For full details, see the Multi-Agent Orchestration guide.

Lifecycle

Define what happens at the start and end of each session, and how the agent handles errors. On Start — Actions that fire when a session begins: tool calls, variable initialization, and a greeting response. See ON_START examples earlier in this guide. Error Handling — Recovery strategies for tool failures, timeout errors, and unexpected input. Configure fallback responses and retry logic to keep conversations from dead-ending. Completion — Conditions that determine when the agent’s task is done and the session should close.

COMPLETE:
  - WHEN: policy_answer_provided == true
    RESPOND: "Is there anything else about our policies I can help with?"

For full details, see the Lifecycle Management guide.

Add A FLOW Section

Add a FLOW section when you need deterministic, step-by-step control, for example, booking flows, identity verification, or data collection wizards.

Define A Flow

AGENT: Order_Tracker
GOAL: "Help customers look up and track their orders"

PERSONA: |
  Efficient order specialist. Provides clear status updates.
  Empathetic when orders are delayed.

TOOLS:
  lookup_order(order_id: string) -> {order_id: string, status: string, tracking_number: string, estimated_delivery: string}
    description: "Look up an order by ID"

  get_shipping_details(tracking_number: string) -> {carrier: string, status: string, location: string, history: object[]}
    description: "Get shipping and tracking information"

FLOW:
  entry_point: ask_order_id

  steps:
    - ask_order_id
    - lookup
    - show_status
    - shipping_details

  ask_order_id:
    REASONING: false
    GATHER:
      - order_id:
          prompt: "What is your order number? (Format: ORD-XXXXX)"
          type: string
          required: true
    THEN: lookup

  lookup:
    REASONING: false
    CALL: lookup_order(order_id)
    ON_SUCCESS:
      SET: tracking_number = result.tracking_number
      THEN: show_status
    ON_FAIL:
      RESPOND: "I could not find that order. Please check the number and try again."
      THEN: ask_order_id

  show_status:
    REASONING: false
    RESPOND: |
      Order: {{order_id}}
      Status: {{status}}
      Estimated delivery: {{estimated_delivery}}

      Would you like shipping details?
    ON_INPUT:
      - IF: input contains "yes" OR input contains "shipping" OR input contains "track"
        THEN: shipping_details
      - ELSE:
        THEN: COMPLETE

  shipping_details:
    REASONING: false
    CALL: get_shipping_details(tracking_number)
    ON_SUCCESS:
      RESPOND: |
        Carrier: {{carrier}}
        Current location: {{location}}
        Status: {{status}}
      THEN: COMPLETE
    ON_FAIL:
      RESPOND: "Shipping details are unavailable right now."
      THEN: COMPLETE

COMPLETE:
  - WHEN: order_status_shown == true
    RESPOND: "Is there anything else I can help with?"

Steps with REASONING: false follow the defined path exactly. The THEN keyword defines the next step. ON_INPUT branches based on user responses.

Key Flow Constructs

Entry point — specifies which step starts the flow. If omitted, the first step in the steps list is used.

FLOW:
  entry_point: welcome

Step list shorthand — declares step order. You still define each step separately.

FLOW:
  welcome -> collect_info -> process -> confirm

Tool call with branching:

process_payment:
  REASONING: false
  CALL: charge_card(card_number, amount)
  ON_SUCCESS:
    RESPOND: "Payment of ${{amount}} processed."
    THEN: confirmation
  ON_FAIL:
    RESPOND: "Payment failed. Try a different card?"
    THEN: collect_payment

Conditional branching on input:

choose_action:
  REASONING: false
  ON_INPUT:
    - IF: input contains "track"
      THEN: tracking_flow
    - IF: input contains "cancel"
      THEN: cancel_flow
    - IF: input contains "return"
      THEN: return_flow
    - ELSE:
      RESPOND: "Please choose: track, cancel, or return."
      THEN: choose_action

SET assignments:

calculate_total:
  REASONING: false
  SET: nights = checkout_date - checkin_date
  SET: total = room_price * nights
  RESPOND: "Your total for {{nights}} nights is ${{total}}."
  THEN: confirm_booking

MAX_ATTEMPTS — limits retries on a step before routing to a fallback.

verify_identity:
  REASONING: false
  MAX_ATTEMPTS: 3
  ON_EXHAUSTED: escalate_to_human
  GATHER:
    - ssn_last_four:
        prompt: "Last 4 digits of your SSN?"
        type: string
        required: true
  CALL: verify_identity(ssn_last_four)
  ON_SUCCESS:
    THEN: authenticated
  ON_FAIL:
    RESPOND: "That did not match. Please try again."
    THEN: verify_identity

Mix Reasoning And Deterministic Steps

Within a single flow, combine deterministic steps (REASONING: false) with reasoning steps (REASONING: true). Use deterministic control for data collection and confirmations; use LLM autonomy for open-ended research or analysis.

FLOW:
  steps:
    - collect_preferences
    - research_options
    - present_plan
    - confirm

  collect_preferences:
    REASONING: false
    GATHER:
      - destination: required
        prompt: "Where would you like to go?"
      - travel_dates: required
        type: date
        prompt: "What are your travel dates?"
      - budget: required
        type: string
        prompt: "What is your budget range?"
    THEN: research_options

  research_options:
    REASONING: true
    GOAL: |
      Research travel options for {{destination}} on {{travel_dates}}
      within a {{budget}} budget. Search flights, hotels, and check weather.
      Compile a recommended itinerary with options at different price points.
    AVAILABLE_TOOLS: [search_flights, search_hotels, get_weather]
    EXIT_WHEN: itinerary_compiled == true
    MAX_TURNS: 8
    THEN: present_plan

  present_plan:
    REASONING: false
    RESPOND: |
      Here is your travel plan for {{destination}}:

      {{compiled_itinerary}}

      Would you like to proceed with booking, or adjust anything?
    ON_INPUT:
      - IF: input contains "book" OR input contains "yes"
        THEN: confirm
      - IF: input contains "change" OR input contains "adjust"
        THEN: collect_preferences
      - ELSE:
        THEN: present_plan

  confirm:
    REASONING: false
    RESPOND: "Booking confirmed. You will receive a confirmation email."
    THEN: COMPLETE

Key properties for reasoning steps:

Property	Purpose
`REASONING: true`	Enables LLM autonomy for this step.
`GOAL`	Step-specific goal, overrides the agent-level goal.
`AVAILABLE_TOOLS`	Subset of agent tools available within this step.
`EXIT_WHEN`	Condition that ends the reasoning loop.
`MAX_TURNS`	Maximum reasoning cycles before a forced exit. Default is 10.
`STEP_CONSTRAINTS`	Additional constraints scoped to this reasoning zone.

NLU Intent Classification

Use the NLU block to define intents, entities, and categories that classify user messages and drive appropriate actions. NLU configuration supports:

Intent classification using keyword patterns and example utterances.
Entity extraction with typed extractors (enum, pattern, location, date, number, free text).
Synonyms for normalizing variant expressions to canonical values.
Embeddings-based matching for semantic similarity when keyword patterns are insufficient.
Multi-language support with per-language model configuration.
A glossary for domain-specific terminology.

For more details, see NLU configuration.

Behavior

Control how the agent enforces rules, filters content, and adapts its behavior based on context. Constraints — Rules and restrictions enforced at runtime. Unlike LIMITATIONS, constraints with REQUIRE conditions and ON_FAIL actions are hard enforcement — the agent cannot proceed without meeting the condition. Guardrails — Content safety policies applied to agent inputs and outputs. Guardrails can block, redact, or flag content using built-in checks or external moderation providers.

GUARDRAILS:
  - NAME: pii_filter
    KIND: output
    CHECK: "output NOT CONTAINS ssn_pattern AND output NOT CONTAINS credit_card_pattern"
    ACTION: redact
    MESSAGE: "Personal information has been removed from the response."

  - NAME: content_safety
    KIND: input
    PROVIDER: openai_moderation
    CATEGORY: hate
    THRESHOLD: 0.7
    ACTION: block
    MESSAGE: "That request contains content I cannot help with."

Behavior profiles — Conditional behavior configurations that activate based on context, such as user role, session flags, or channel. For full details, see the Constraints & Guardrails and Behavior Profiles guides.

Multi-Language Support

Build agents that detect the user’s language and respond in kind.

Set Up Language Detection

NLU:
  languages: ["en", "es", "fr", "de", "pt"]
  defaultLanguage: "en"
  allowCodeSwitching: true

Field	Description
`languages`	Supported language codes (ISO 639-1).
`defaultLanguage`	Fallback when detection is ambiguous.
`allowCodeSwitching`	Whether the agent follows the user when they switch languages mid-conversation.

Route by Language

HANDOFF:
  - TO: Spanish_Support
    WHEN: detected_language == "es"
    CONTEXT:
      pass: [customer_id, query]

  - TO: English_Support
    WHEN: detected_language == "en"
    CONTEXT:
      pass: [customer_id, query]

Provide Language-Specific Models

Route to different LLM models based on detected language.

NLU:
  languages: ["en", "es", "ja"]
  defaultLanguage: "en"
  languageModels:
    en: "claude-sonnet-4-5-20250929"
    es: "claude-sonnet-4-5-20250929"
    ja: "gpt-4o"

Add A Glossary

Inject domain-specific terms to ensure the agent uses correct terminology regardless of language.

NLU:
  languages: ["en", "es"]
  defaultLanguage: "en"
  glossary:
    - "Agent Platform"
    - "SearchAI"
    - "eval set"
    - "guardrail policy"

Set Language per Environment Variable

For deployments that serve a single market:

NLU:
  defaultLanguage: "{{env.DEFAULT_LANGUAGE}}"

Configure DEFAULT_LANGUAGE=es for your Spanish market deployment and DEFAULT_LANGUAGE=en for English.

Write Multi-Language Templates

TEMPLATES:
  welcome:
    DEFAULT: "Welcome! How can I help you today?"
    MARKDOWN: |
      # Welcome!
      How can I help you today?

  bienvenida:
    DEFAULT: "Bienvenido! Como puedo ayudarte hoy?"

Customize System Messages

Use MESSAGES to customize system-generated responses to match the agent’s voice.

MESSAGES:
  error_default: "I am sorry, something went wrong. Let me try again or connect you with a team member."
  constraint_blocked: "I am unable to proceed due to a policy restriction."
  escalation_format: "Let me connect you with a team member who can help further."
  conversation_complete: "Thank you for contacting us. Have a great day!"
  gather_prompt: "I need a bit more information to help you."

Test Your Agent

Studio provides an integrated chat interface for testing agents in real time.

Open the agent from the Agents list.
Switch to the Chat tab.
Type messages in the input field to interact with the agent.

The chat interface sends messages to the runtime and displays the agent’s responses in real time.

Debug Panel

The chat view includes a split-pane debug panel.

Panel item	What it shows
Trace events	Every action the agent takes: LLM calls, tool invocations, state changes.
Timing information	Latency for each operation.
Variable state	Current values of session variables.

Use trace events to understand why an agent made a particular decision. They show the full chain of reasoning, tool calls, and responses.

Session Management

Each test conversation creates a session. You can:

Start a new session to begin a fresh conversation.
View session history from the Sessions page.
Copy the session ID for reference or debugging.

For full details, refer Sessions guide.

Use The AI Architect

AI Architect is a context-aware AI assistant built into Studio. Access it from the Architect icon in the Studio header bar. The panel adapts to your current context. When editing a specific section (for example, Identity or Tools), the Architect shows section-specific suggestions and proposes code changes as a diff you can accept, reject, or refine.

AI Architect requires an LLM provider configured at the workspace level under Admin > Arch. If no provider is configured, a warning banner appears in the panel.

Troubleshooting

Symptom	Resolution
Agent loops endlessly	Set `max_reasoning_iterations` in the `EXECUTION` block to cap tool-call/response cycles.
Agent calls the wrong tool	Improve `INSTRUCTIONS` with numbered steps and add clear `description` fields to each tool definition.
Agent responds when it should use a tool	Strengthen the `GOAL` to explicitly state when tool use is required (for example, “Always search before answering”).
Agent ignores limitations	`LIMITATIONS` are prompt-level boundaries — the LLM may not always enforce them. For hard enforcement, use `CONSTRAINTS` with `REQUIRE` conditions and `ON_FAIL` actions.
Agent tone drifts in long conversations	Keep the persona description concise and specific. Use `MESSAGES` to control system-generated text.
Flow skips a step	Verify every step has a `THEN` pointing to the correct next step. A missing `THEN` ends the flow early.
User input not matched in `ON_INPUT`	Conditions are evaluated top-to-bottom. Place more specific conditions before general ones, and always include an `ELSE` branch.
Reasoning step runs too long	Set `MAX_TURNS` lower: 3–5 for focused tasks, 8–10 for research tasks.
Reasoning step produces inconsistent results	Add `STEP_CONSTRAINTS` to narrow the reasoning scope and use a specific step-level `GOAL`.
Low NLU classification accuracy	Add 10 or more examples per intent and enable embeddings for semantic matching.
Intent confusion between similar intents	Make patterns more distinct. Increase the confidence threshold.
Agent responding in the wrong language	Verify `allowCodeSwitching` is enabled. Add explicit instructions in `PERSONA` to respond in the user’s language.

Studio Overview — navigation, project management, and workspace layout.
Tools, Knowledge & Connections — managing tools and resources used by agents.
Testing, Deployment & Operations — evaluations and deployment.
Multi-Agent Orchestration — coordinating multiple agents.
Safety & Guardrails — content safety and constraints.
Memory & State — session and persistent memory.
FLOW reference — complete FLOW syntax reference.
Tools reference — tool definition syntax.

Building Agents

Administration

References

Documentation Index

​Before You Begin

​Agent Types

​Create An Agent in Studio

​Open The Agents Page

​Start Agent Creation

​Use the ABL Editor

​Save and Validate

​Outline Panel

​Diagnostics Panel

​Insert Tool Signature

​Define Identity And Persona

​Core Identity Fields

​Add An Opening Message

​Supervisor Agents

​Configure Execution

​Add Tools

​Capabilities

​Coordination

​Lifecycle

​Add A FLOW Section

​Define A Flow

​Key Flow Constructs

​Mix Reasoning And Deterministic Steps

​NLU Intent Classification

​Behavior

​Multi-Language Support

​Set Up Language Detection

​Route by Language

​Provide Language-Specific Models

​Add A Glossary

​Set Language per Environment Variable

​Write Multi-Language Templates

​Customize System Messages

​Test Your Agent

​Debug Panel

​Session Management

​Use The AI Architect

​Troubleshooting

​Related

Before You Begin

Agent Types

Create An Agent in Studio

Open The Agents Page

Start Agent Creation

Use the ABL Editor

Save and Validate

Outline Panel

Diagnostics Panel

Insert Tool Signature

Define Identity And Persona

Core Identity Fields

Add An Opening Message

Supervisor Agents

Configure Execution

Add Tools

Capabilities

Coordination

Lifecycle

Add A FLOW Section

Define A Flow

Key Flow Constructs

Mix Reasoning And Deterministic Steps

NLU Intent Classification

Behavior

Multi-Language Support

Set Up Language Detection

Route by Language

Provide Language-Specific Models

Add A Glossary

Set Language per Environment Variable

Write Multi-Language Templates

Customize System Messages

Test Your Agent

Debug Panel

Session Management

Use The AI Architect

Troubleshooting

Related
