Analytics Explorer

The Analytics Explorer page monitors event volume, LLM performance, token consumption, and cost in near real time. Use it to investigate production incidents, track the impact of model changes, or audit LLM spend during peak traffic. Navigation: Project -> Insights -> Analytics Explorer Date range: Set at the upper-right area of the page, for example Last 7 days. Every tab follows this range.

The page organizes its detail into five tabs.

Tab	What it shows
Overview	Headline volume, error, token, and cost metrics for the selected period.
LLM Performance	Model-level latency, token, error, and throughput metrics.
Sessions Explorer	Session-level records with filters, columns, and export.
Traces Explorer	Individual trace events, with timeline and waterfall views.
Query	Ad-hoc SQL against project event data.

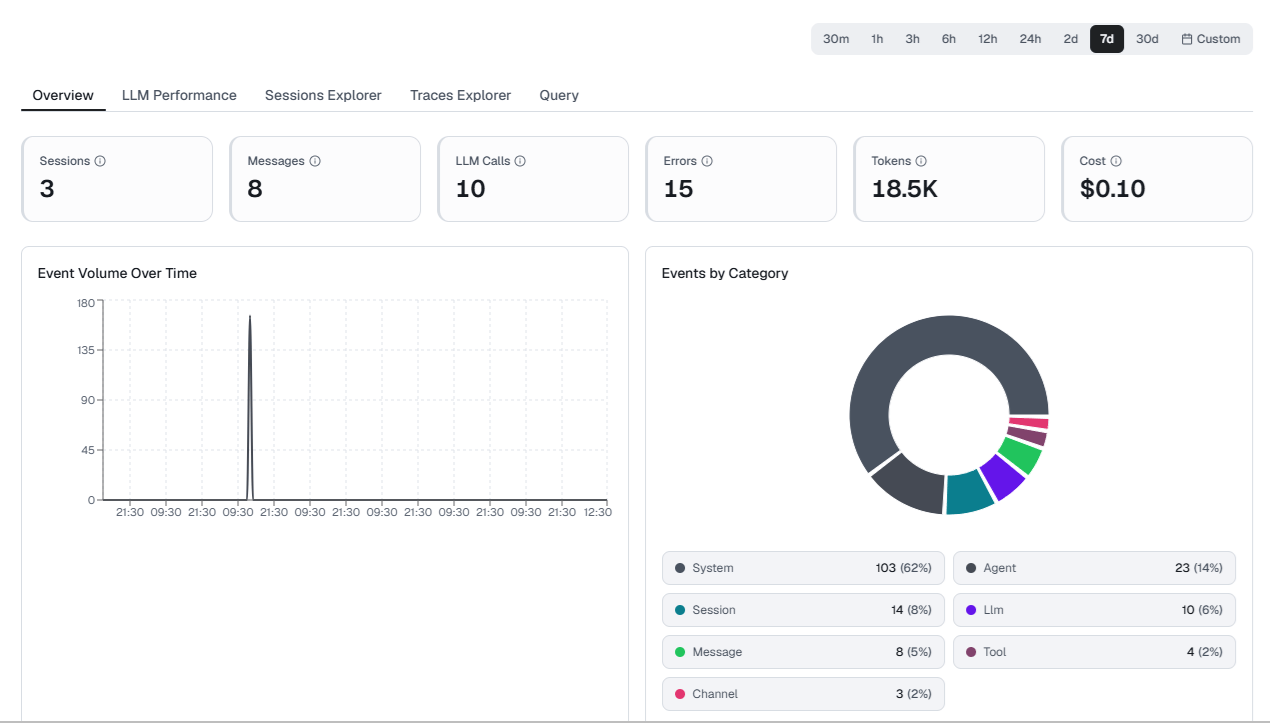

Overview

Six metric cards summarize the selected period at a glance.

Metric	Description
Sessions	Total sessions in the selected period. A session is a single end-to-end interaction between a user and the agent system.
Messages	Total messages across all sessions, including both user messages and agent responses.
LLM Calls	Total LLM API calls agents made during the period. Includes calls to all configured models, for example routing, generation, and evaluation.
Errors	Total errors during agent execution, including LLM failures, timeout errors, and tool invocation errors.
Tokens	Total LLM tokens, both input and output, across all calls.
Cost	Estimated cost based on token usage and per-model pricing. Use it to track spend against budgets or compare cost-efficiency across model configurations.

LLM performance

Model-level metrics, including per-call latency distributions, average tokens per call, error rates by model, and throughput. Use this view to benchmark model performance and identify candidates for optimization or replacement.

The LLM Performance tab isn’t captured in the current screenshots. Confirm its metric cards and charts before publishing.

Sessions explorer

Sessions Explorer lists every session in the selected period so you can isolate the ones worth investigating. Four metric cards summarize the set.

Metric	Description
Total Sessions	Sessions recorded in the selected period.
Active	Sessions currently in progress.
Avg Duration	Mean session duration across the set.
Error Rate	Percentage of sessions that recorded at least one error.

Narrow the list

Status chips filter the list to All, Active, Completed, Escalated, Failed, or Ended. Below the chips, five controls refine the results further.

Control	Description
Search sessions	Matches sessions by keyword.
Channel	Filters by the channel the session arrived on. Defaults to All channels.
Environment	Filters by deployment environment, for example `dev`. Defaults to All environments.
Source	Filters by session source. Defaults to All sources.
Filters	Opens additional filter options.

Select Columns to choose which columns the table displays. Select Export to download the session list.

Session list

Column	Description
Session ID	Unique session identifier, with a copy control.
Agent	Agent that handled the session, for example `MainSupervisor`.
Status	Current session state, for example `ended`.
Environment	Environment the session ran in.
Last Activity	Time since the last recorded activity. Sorts the table by default.
Traces	Number of trace events the session generated.
Duration	Total session duration.
Tokens	Total tokens the session consumed.
Cost	Estimated cost for the session. Values below the display threshold show as `<$0.001`.
Errors	Error count for the session. Non-zero values are highlighted.

Expand a row to see the full session ID, channel, trace event count, and last activity. Select View Traces to open that session in Traces Explorer.

Traces explorer

Traces Explorer inspects the individual events inside a session. Two sub-tabs divide the view: Traces for all execution events, and Generations for model generations.

Filter traces

Type chips filter events to All, LLM Call, Tool Call, Decision, Handoff, Error, or Agent. Each applied filter appears as a chip below the search field, for example Type: LLM Call. Remove a single filter from its chip, or select Clear all to remove them all. Reset filter shows the number of active filters and restores the unfiltered list. Use Search traces to match events by keyword, Filters for additional filter options, and Export to download the trace list.

Sessions panel

The left panel lists the sessions in scope. Each card shows the agent name, status, span count, turn count, and duration. Select a session to load its events in the detail panel.

Timeline and waterfall

The detail panel shows the selected session’s events in one of two views. A counter reports how many events the current filter matches, for example 4 of 84 events.

View	Description
Timeline	Lists events in sequence as expandable cards. Use it to read an event’s full payload.
Waterfall	Plots spans against a shared time axis, with each span’s offset from the session start and its duration bar. Use it to find latency gaps and see where errors occurred.

Waterfall opens with a summary bar reporting the trace mode (for example, Historical), Spans, Duration, Tokens, Cost, and Errors. Each span row shows a status icon for success or failure, the agent and model, the offset from session start, and the duration bar. Chips on the row repeat the span duration, token count, and cost.

Event detail

Every event card carries the event type, agent name, and duration, plus phase, run, and cause badges. Expand a card for the full record.

Field	Description
Trace ID	Identifier for the trace the event belongs to.
Session ID	Session the event belongs to.
Span ID	Identifier for this span.
Event ID	Identifier for this event.

Each identifier has a copy control. An LLM Call event adds model execution detail: Model, Provider, Input Tokens, Output Tokens, Total Tokens, Cost, and Streaming. Expand Messages to read the prompt and user turns, and Response to read the model output. A Tool Call event shows the Tool name, an expandable Input, and Show raw data for the unformatted payload.

Query

The Query tab runs SQL against project event data for investigations the pre-built views don’t cover.

Select a table, for example abl_platform.platform_events.
Write your SQL, or select Example Queries to start from a template.
Select Execute. Select Clear to empty the editor.

Queries use the same scoping tokens as dashboard widgets. Use {tenantId:String} and {projectId:String} for tenant and project isolation, and {from:DateTime64(3)} and {to:DateTime64(3)} to follow the selected time range. {sessionId:String} is optional. Results are capped at 1,000 rows. The following query counts events by type and flags errors:

SELECT
  event_type,
  count() AS cnt,
  countIf(has_error = 1) AS errors
FROM abl_platform.platform_events
WHERE tenant_id = {tenantId:String}
  AND project_id = {projectId:String}
  AND timestamp >= {from:DateTime64(3)}
  AND timestamp <= {to:DateTime64(3)}
GROUP BY event_type
ORDER BY cnt DESC
LIMIT 100

The results panel reports the row count and runtime, for example Results — 20 rows (11ms). Select Copy to copy the result set, or Add to dashboard to save the query as a widget on a custom dashboard.
