App Simulation and Testing

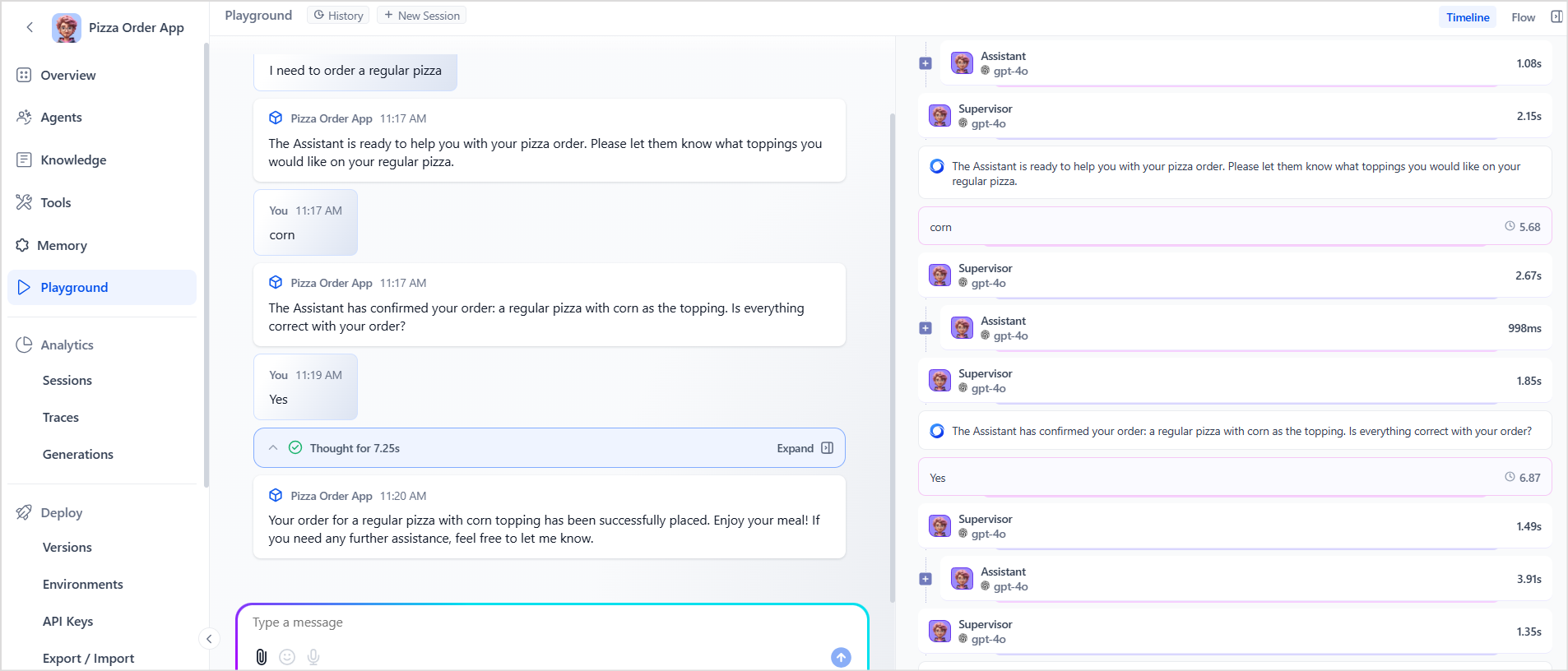

Simulating and verifying the behavior of an Agentic application before it is deployed in the real world helps detect the accuracy of the response under different scenarios. This helps minimize errors, enhances the user experience, and improves the agent's effectiveness in the actual environment. The Simulate section provides an interactive interface that allows users to submit queries and view the corresponding responses generated by the agent.

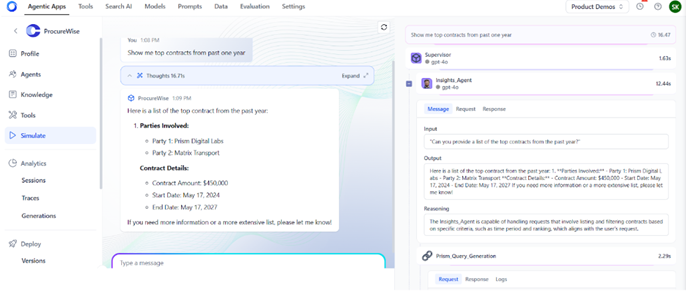

Agentic App Simulation

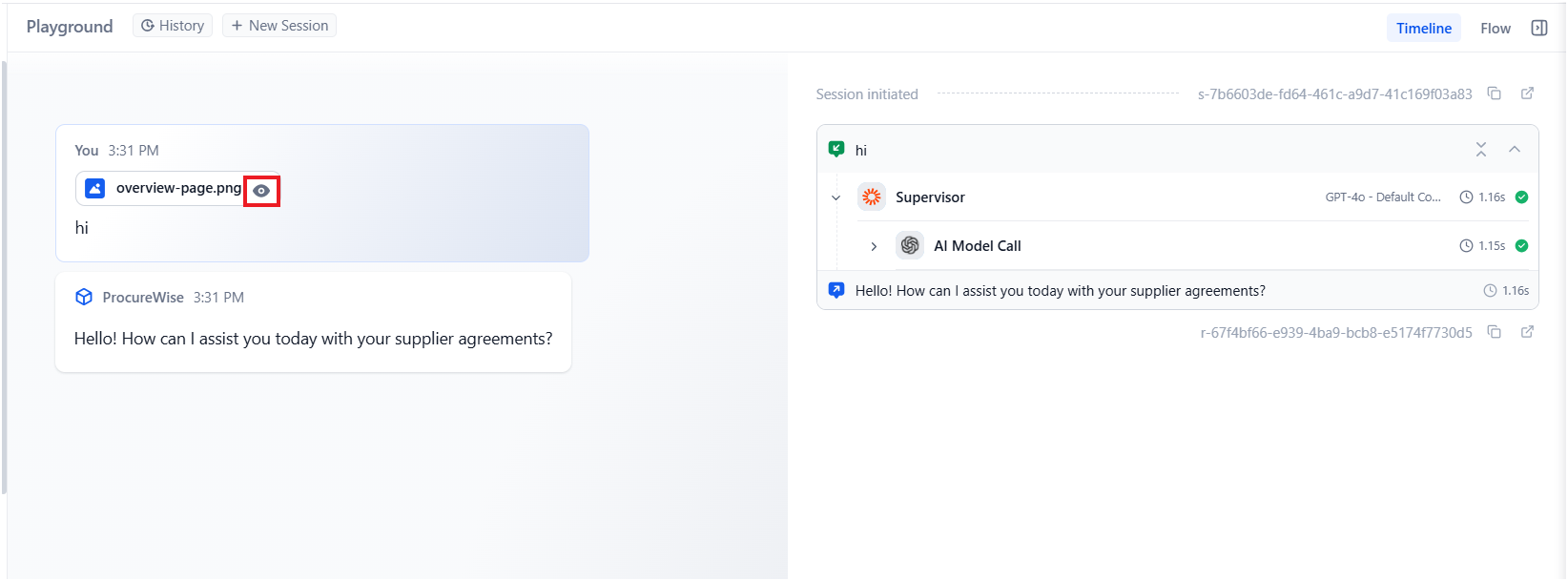

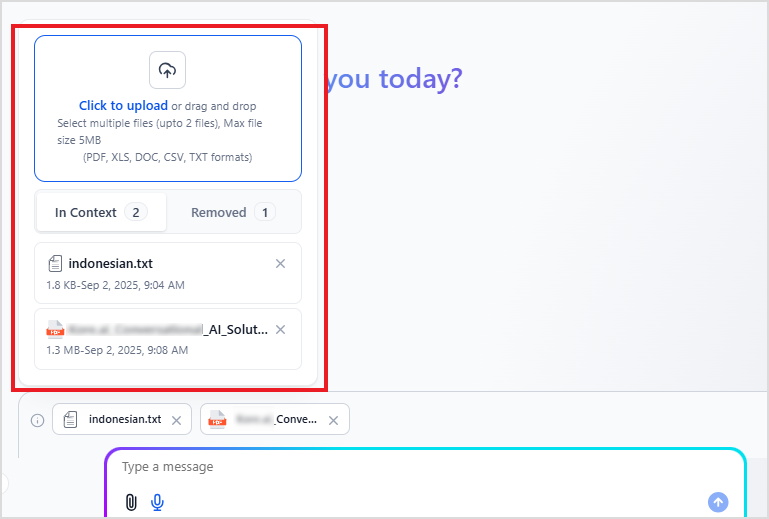

Users can also pass contextual information to the agent through attachments. Learn More.

Query Input: Enter your query in the designated input field to initiate the simulation.

Response Display: The agent's response is displayed, providing immediate feedback on the input provided.

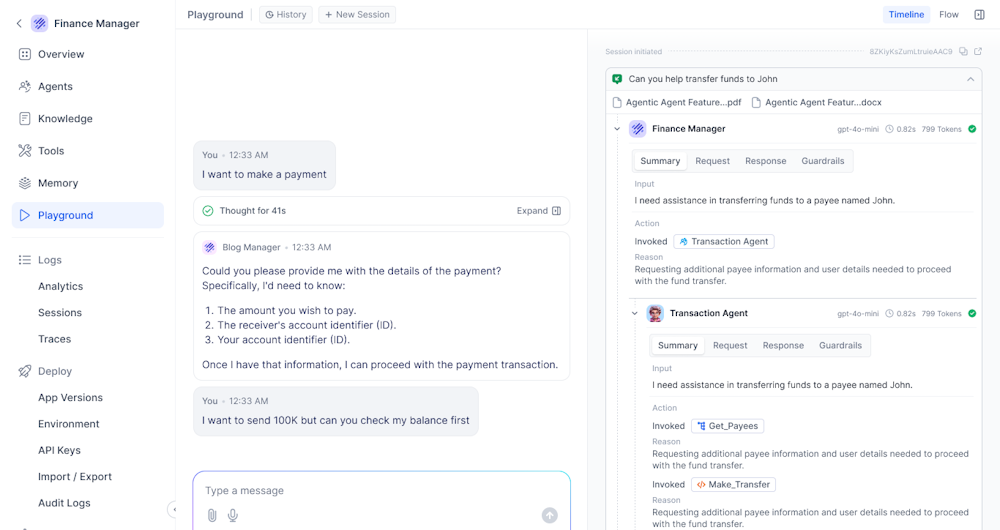

Processing Timeline: The right pane displays a chronological timeline that details the processing of the user query. It helps you trace the flow of execution and understand the contribution of each component involved in generating a response. The highlights of the timeline:

  • Displays the query execution in chronological order, starting from the user's input to the final output.
  • Each step in the timeline represents a distinct agent or tool(e.g., Supervisor, Insights_Agent) and includes the time taken to complete its task.
  • Clicking on a step reveals detailed information, including:
  • Messages: The specific question or command sent to the component or received from the component, along with the reasoning or explanation of the logic used to process the request.
  • Request: The request prompt to the component
  • Response: Response received from the component.
  • Logs: Debug information, if any, is available for the execution step.

Processing Timeline

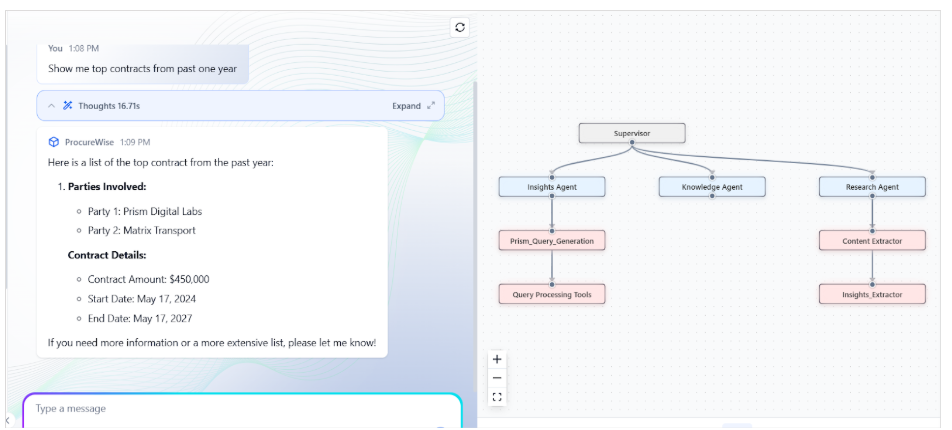

Flow Diagram: The overall process flow is visually represented in a concise diagram, making it easier to understand the sequence of operations.

This detailed layout enables users to quickly grasp the system's processing, enhancing understanding of how queries are processed and responses are generated.

Flow Diagram

Authorization Process for Agent Tools

If the Auth Profiles configured for the agent’s tools require user authorization, the request is shown at the start of the session.

The system evaluates whether the authorization has already been completed.

  • If already authorized: The status is shown as "Authorized" (as displayed in the image), and the agent proceeds with responding to the user's query. \

  • If not authorized: The user is prompted to authorize access before the agent can proceed further. A secure redirect URL will be presented for the user to complete the authorization process.

Note: Until authorization is completed, the agent will not be able to execute the required actions due to lack of access to protected services. In this situation, the tool will fail and return errors. If more than one authorization is required, all of them are listed in the table at the beginning of the interaction.

Example

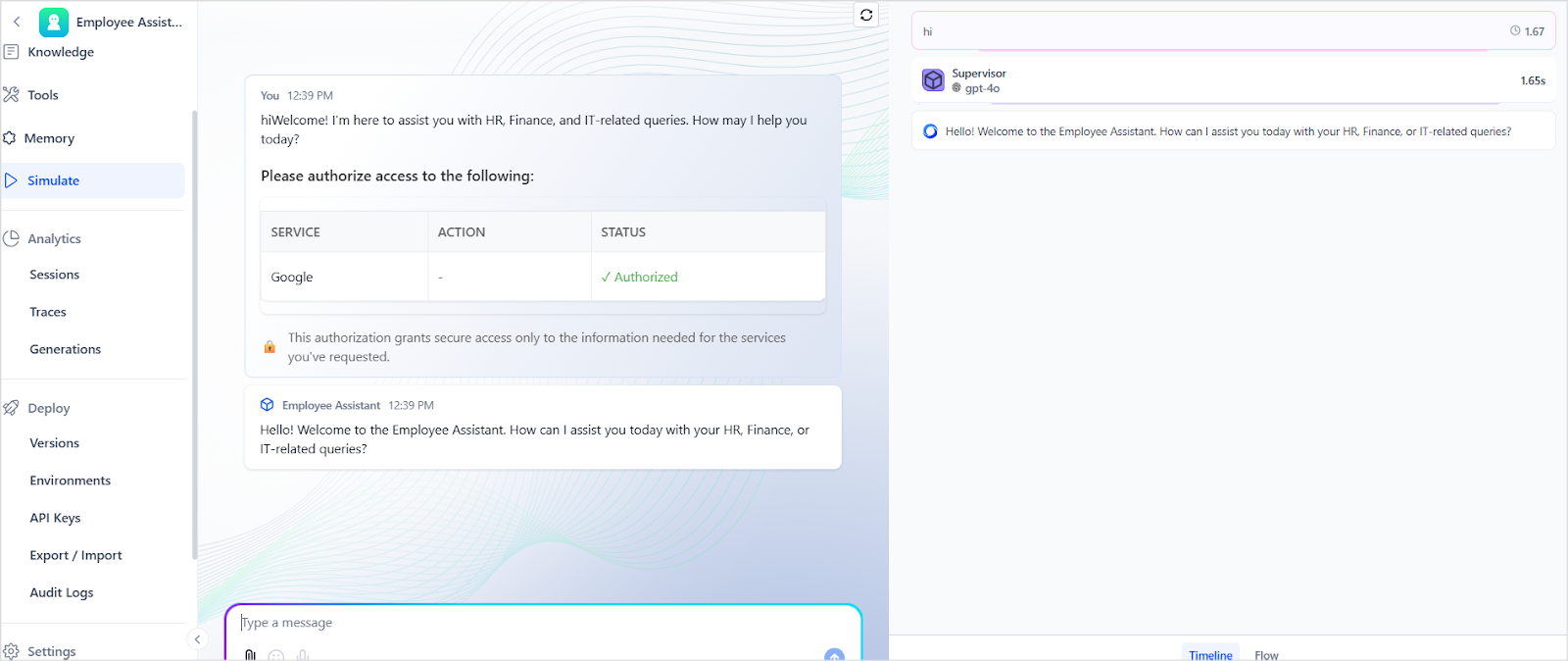

In the following example, the agent requires access to Google services and the status indicates that the user has already completed the auth process.

alt_text
