Unified Schema

Back to Search AI connectors list Search AI uses a Unified Schema to standardize data ingestion from diverse content sources — enterprise applications, files, and webpages. This schema defines a consistent structure so that data from different formats and systems can be interpreted and searched uniformly. The Unified Schema has a predefined set of fields, also referred to as Document Fields, to store the content and metadata of the ingested content. During ingestion, data from the source application is automatically assigned to the most relevant unified schema field. You can override default mappings using the Field Mapping option in the connector configuration, and extend the schema with custom fields to accommodate additional data.

Document Fields vs Chunk Fields

Document fields store metadata about the source document and are populated during ingestion. They help filter the set of documents considered and provide context for results. Chunk fields capture the content and attributes of individual chunks created during processing, and retrieval operates on these fields to identify relevant information.

Default Schema Fields

The following are the default fields of the Unified Schema.

Some fields in the list are system fields and cannot be updated.

Document Field	Description	Is System Field
`access_level`	Visibility or permission level associated with the document	No
`archived_at`	Timestamp indicating when the document or record was archived	No
`assignee`	Identifier of the user or entity responsible for the document, task, or record	No
`assignee_email`	Email address of the user assigned to the document	No
`assignee_name`	Display name of the assignee	No
`blockedAcl`	List of users or groups explicitly restricted from accessing the document	No
`branch`	Branch, version, or division of content (for example, in code repositories or knowledge bases)	No
`category`	Classification label used to group similar documents or content types	No
`channel_id`	Unique identifier for the communication channel the document originates from	No
`checksum`	Unique hash value generated for the document content	No
`chunkType`	Type of chunk	Yes
`closedOn`	Timestamp indicating when the item (for example, issue, task, or conversation) was closed	No
`comment_count`	Total number of comments associated with the item	No
`comments`	List or collection of user comments related to the item	No
`commit_id`	Unique identifier of the commit associated with the item	No
`company_id`	Unique identifier for the company or organization	No
`company_name`	Name of the company associated with the record	No
`contact_id`	Unique identifier for the contact person	No
`contact_name`	Name of the contact person	No
`content`	Main textual or structured content of the record (for example, body of a document, note, or comment)	No
`contentId`	Unique identifier of the content entity	No
`conversation_id`	Unique identifier of the conversation or thread	No
`createdBy`	User ID or name of the person who created the item	No
`createdOn`	Timestamp when the item was created	No
`deleted_at`	Timestamp when the item was deleted (if soft-deleted)	No
`doc_created_by`	Identifier or name of the user who created the document	No
`doc_created_by_email`	Email address of the document creator	No
`doc_created_by_id`	Unique ID of the document creator	No
`doc_created_by_name`	Full name of the document creator	No
`doc_created_on`	Timestamp when the document was created	No
`doc_id`	Unique identifier of the document	No
`doc_path`	File path or storage path of the document	No
`doc_source_type`	Type of source from which the document was ingested	No
`doc_updated_by`	Identifier or name of the user who last updated the document	No
`doc_updated_by_email`	Email address of the user who updated the document	No
`doc_updated_by_id`	Unique ID of the user who last updated the document	No
`doc_updated_on`	Timestamp when the document was last updated	No
`downvote_count`	Number of downvotes received by the item (for example, post, comment, or answer)	No
`due_date`	Due date or deadline associated with the task or item	No
`extractionMethod`	Method used to extract data from the source	Yes
`extractionStrategy`	Strategy or approach followed for data extraction	Yes
`file_content`	Actual text or encoded content of the file	No
`file_image_url`	URL to the preview image of the file	No
`file_preview`	Short summary or visual preview of the file content	No
`file_title`	Title or display name of the file	No
`file_url`	Direct URL link to access or download the file	No
`html`	Raw HTML version of the document or page content	No
`issueType`	Type or category of issue	No
`keywords`	List of keywords or tags extracted or assigned to the content	No
`labels`	Labels or classifications applied to the item	No
`language`	Language in which the content is written	No
`lastSyncAt`	Timestamp of the most recent synchronization with the source system	No
`location`	Physical or virtual location associated with the record	No
`mentioned_users`	List of users mentioned or tagged within the content	No
`message_type`	Type of message	No
`mime_type`	MIME type of the file or document	No
`object_created_by_email`	Email address of the user who created the object	No
`object_created_by_id`	ID of the user who created the object	No
`object_created_by_name`	Name of the user who created the object	No
`object_created_on`	Timestamp when the object was created	No
`object_type`	Type of object	No
`organization_id`	Unique identifier for the organization	No
`organization_name`	Name of the organization associated with the record	No
`owner_email`	Email address of the item owner or assignee	No
`owner_id`	Unique ID of the item owner or assignee	No
`owner_name`	Full name of the item owner or assignee	No
`page_body`	Text content or body of an HTML page	No
`page_count`	Number of pages in the document from which the content is ingested	No
`page_html`	Page content in HTML format	No
`page_image_url`	URL for the page image or thumbnail	No
`page_number`	Page number of the content	No
`page_preview`	Short preview of the page content	No
`page_title`	Title of the page	No
`page_url`	URL of the page or web resource	No
`parent_name`	Name of the parent entity	No
`parent_url`	URL of the parent document or source from which this page is derived	No
`priority`	Priority level of the item	No
`project_description`	Description or summary of the project	No
`project_id`	Unique identifier for the project	No
`project_name`	Name of the project	No
`project_owner_email`	Email address of the project owner	No
`project_owner_id`	ID of the project owner	No
`project_owner_name`	Name of the project owner	No
`project_status`	Current status of the project	No
`projectName`	Name of the project	No
`published_at`	Timestamp when the item or content was published	No
`reporter`	Identifier or name of the person who reported the issue	No
`reporter_email`	Email address of the reporter	No
`reporter_name`	Full name of the reporter	No
`repository_id`	Unique ID of the code or content repository	No
`repository_name`	Name of the repository	No
`resource_type`	Type of resource	No
`share_count`	Number of times the item has been shared	No
`size`	File size or data volume	No
`sourceType`	Type of content source: web crawl, file upload, or connector	No
`sprint`	Sprint or iteration the item belongs to	No
`status`	Current status of the item	No
`sys_file_type`	System-defined file type classification	Yes
`sys_racl`	Role-based Access Control List defining permissions for the resource	No
`sys_source_name`	Name of the system or connector from which the item originated	Yes
`tags`	Tags associated with the record for categorization or search	No
`thread_id`	Unique identifier of the thread or discussion chain	No
`title`	Title or name of the item	No
`updatedBy`	Identifier or name of the user who last updated the record	No
`updatedOn`	Timestamp when the record was last updated	No
`upvote_count`	Number of upvotes received by the item	No
`url`	Link to access the resource or item	No
`view_count`	Number of times the item has been viewed	No
`visibility`	Access level of the item	No
`workspace_id`	Unique identifier for the workspace or environment	No
`workspace_name`	Name of the workspace associated with the item	No

Custom Fields in Schema

Search AI allows you to extend the Unified Schema with up to 50 custom fields, so you can include additional data from third-party applications as searchable content. Custom fields can also be used in the Workbench — for example, to store LLM-generated summaries of ingested content.

Adding a New Field

Click Manage Schema on the Manage Content page in the connector.
Click +New Field.
Provide the following details:

Field	Description
Display Name	User-friendly name shown in the UI
Data Type	`string` or `array`
Field Name	Technical name used in scripts and field mapping. Use `cfa1`-`cfa5` for array fields and `cfs1`-`cfs45` for string fields
Description	Brief description of the field’s intended use

Field Mapping

By default, fields ingested from a connector are automatically mapped to the most appropriate unified schema fields. You can customize this mapping for specific business requirements. For example, a Google Drive connector maps the source field createdTime to the unified schema field createdOn by default. If you want to display last-modified-user information in search results, you can update the mapping to point lastModifyingUser.displayName to updatedBy. Implementing Field Mapping After an initial sync, view the connector’s response payload and map fields using a post-processor script:

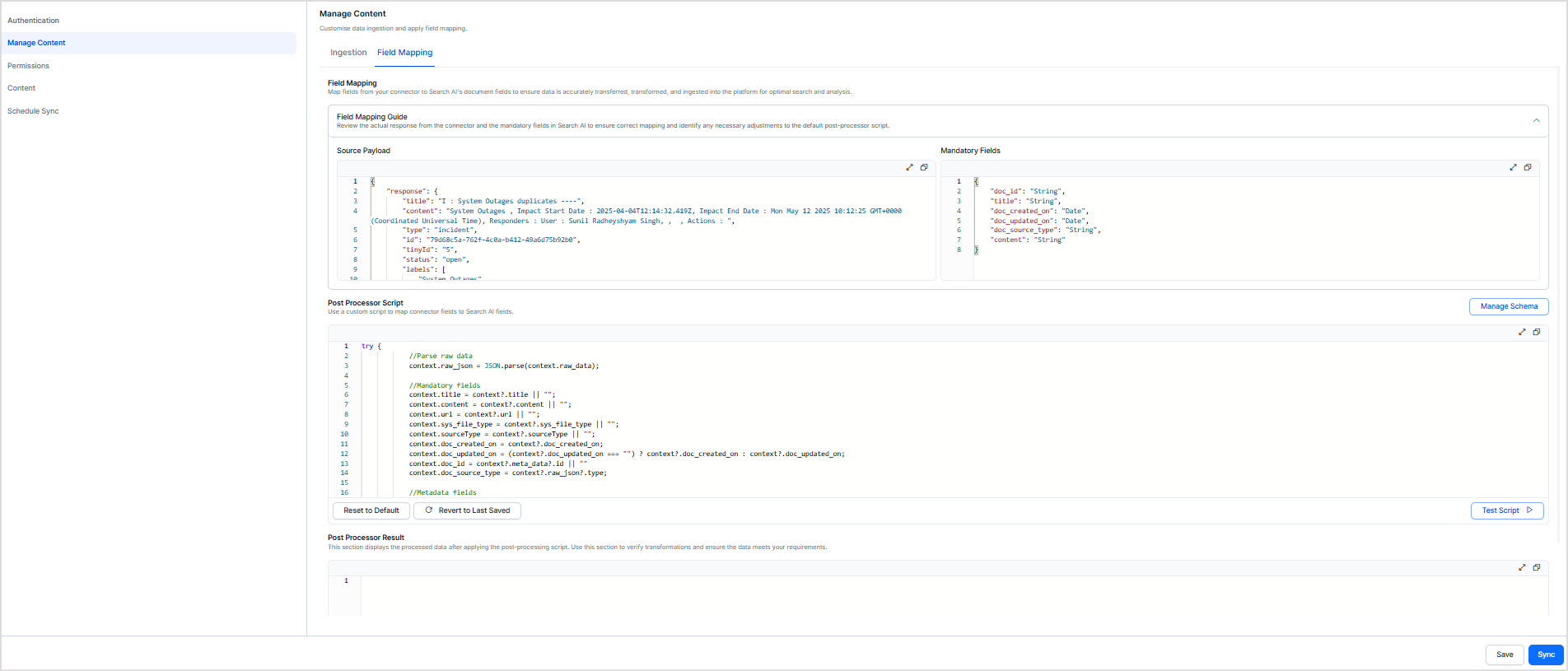

Go to the Field Mapping tab under Manage Content.
The source payload shows the actual response from the connector. Required Search AI fields are listed in the right pane.
Use the source payload and post-processor scripts to map source fields to unified schema fields. A default script is provided for each connector showing the default mappings.

Example: Mapping a date field If the source payload contains a createdAt field that should map to doc_created_on, add this line to the script: Source Payload

{
    "incidents": {
        "title": "I : System Outages duplicates ----",
        "content": "System Outages , Impact Start Date : 2025-04-04T12:14:32.419Z, Impact End Date : Mon May 12 2025 10:12:25 GMT+0000 (Coordinated Universal Time), Responders : User : John Doe , Actions : ",
        "type": "incident",
        "id": "79d68c5a-762f-4c0a-b412-49a6d75b92b0",
        "tinyId": "5",
        "status": "open",
        "labels": [
            "System Outages"
        ],
        "createdAt": "2025-04-04T12:14:32.419Z",
        "updatedAt": "2025-04-04T12:14:49.526Z",
        "priority": "P3",
        "responders": "User: John Doe, ",
        "actions": [],
        "impactStartDate": "2025-04-04T12:14:32.419Z",
        "impactEndDate": "2025-05-12T10:12:25.985Z"
    }
}

Script Update

context.doc_created_on  = context?.raw_json?.createdAt;

If a connector supports multiple object types, the source payload shows a combined set of fields for all objects. When mapping fields from two or more objects to custom fields, use separate custom fields for each object type:

context.cfs1 = context?.raw_json?.incidentTitle;
Context.cfs2 = context?.raw_json?.alertTitle;

Using Manage Schema

The Unified Schema is accessible from several places in Search AI, each serving a different purpose in the content pipeline. Enrich & Transform Stages In the Transform and Enrich stages, Manage Schema provides visibility into all available fields, so you can reference them when writing transformation logic and configuring enrichment actions. You can review field descriptions while selecting fields to define conditions, and use that context to choose an appropriate outcome field to apply the condition to. Schema fields can be used to store intermediate or restructured content, and if the field you need doesn’t exist yet, you can add a custom field directly from Manage Schema without leaving the stage configuration. Search Results Schema fields control what metadata is surfaced when search results are displayed to users. From the search results configuration, Manage Schema provides visibility into all available fields and their descriptions, so you can choose the right fields to ensure users see the most relevant context for each result. Business Rules When defining business rules, schema fields are the attributes on which rules operate. Manage Schema lets you review available fields and their descriptions to identify the right field to use in a rule’s outcome. The field selected in the outcome is evaluated when the rule is applied to boost, lower, hide, or filter chunks.
